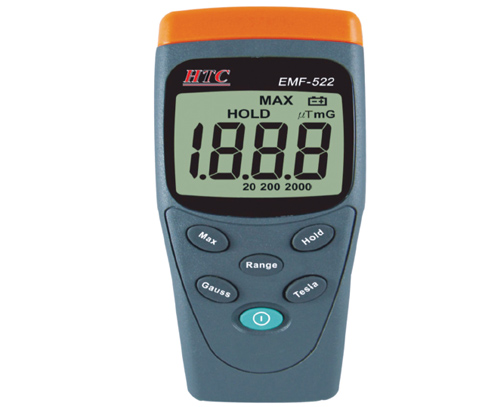

HTC EMF-522

Electro Magnetic Field Tester

Features:

  • 3 ½ Digits LCD
  • 1999 Counts
  • Over Load : LCD display "OL"
  • Battery Life : Approximate 100 hours

Specification:
Details Output
Range 200/2000mG,20/200μT
Resolution 0.1/1mG or 0.01/0.1μT
Frequency Response 30Hz to 300Hz
Sensor Single Axis
Accuracy ± (2.5%+6dgt) at 50Hz/60Hz
Sample rate 2.5 times per Second
Operating Temperature & humidity 5 oC~40 oC, below 80% RH
Storage Temperature & Humidity -10 oC~60 oC, below 70% RH

  • Standard Accessories : carrying case, Manual, 9V Battery
  • Dimensions :130 x 56 x 38mm

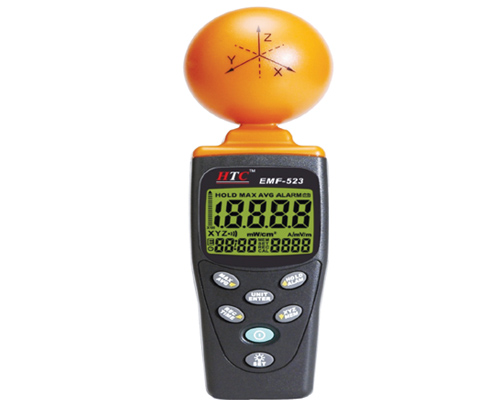

HTC EMF-523

Electro Magnetic Field Tester

Features:

  • 3 ½ Digits LCD
  • RF Three Axis Field Strength Meter 50Mhz to 3.5Ghz

Specification:
Details Output
Measuring Range 38mV to 20V/m
Frequency Range 50Mhz ~ 3.5 Ghz
Manual Data Memory Records Maximum & AVG
Memory Recall Adjustable
Sample Time 2.5 times per Second
Alarm Function Adjustable Threshold ON/OFF
Measuring Units mV/m, V/m, μA/m, mA/m, μW/m² , mW/m², μW/cm²
Display Resolution 0.1mV/m, 0.1 μA/m, 0.001 μW/m², 0.001 μW/cm², 0.01V/m, 0.1mA/m, 0.01 W/m²

  • Standard Accessories : Hard Carrying case, Instruction Manual, 9V Battery
  • Dimensions : 60(L) x 60(W) x 195(H) mm
