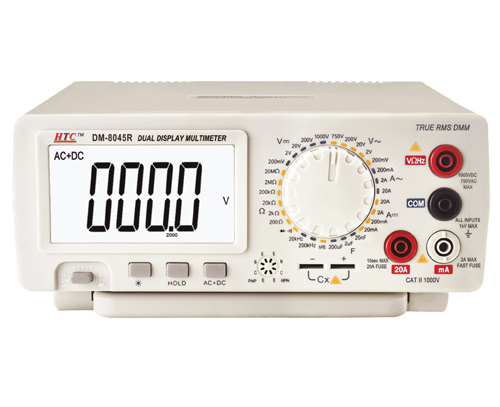

HTC DM-8045R
Bench Multi Meter
Features:
- 4 ½ digit (20,000 count) resolution
- 0.03% basic VDC accuracy
- VFD dual display to indicate two measurements simultaneously
- AC + DC True RMS
- Up to 25 readings per second measurementrate
- AC volt & amp measurement over wide frequency range (ACV 100 kHz/ACI 20 kHz)
- Limit mode for Pass/Fail testing
- Built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Compare
- CATI (1000 V)/CATII (300 V) protection
Technical Data:
| Name |
Range |
Resolution |
Accuracy |
Frequency |
| V DC |
200 mV to 1000 V |
1 uV |
0.015 + 0.003 |
- |
| V AC |
200 mV to 750 V |
1 uV |
0.2 + 0.05 |
20 Hz to 100 KHz |
| A DC |
200 µA to 10 A |
1 nA |
0.02 + 0.005 |
- |
| A AC |
20 mA to 10 A |
100 uA |
0.3 + 0.06 |
20 Hz to 2 kHz |
- Standard Accessories : Versatile multimeter for manufacturing, development and service applications
- Dimensions : 88 x 217 x 297 mm (3.46 x 8.56 x 11.7 in)
