  • HTC VB-8205 Vibration Meter

HTC VB 8205

Vibration Meter

Features:

  • Measure Accelerator / Velocity / Displacement with RPM & Frequency
  • Metric / Imperial Measurement
  • AC output socket for headphones and recording
  • Optional Headphones for use as electronic stethoscope
  • Optional RS-232 Communication (Advanced Software Program for all windows)

Technical Data:
Basic Function Basic Function Metric Imperial
Acceleration
10Hz - 1KHZ (Mode1)
10Hz - 10KHz(Mode 10)
 0.1 ~ 400.0 m/s½ 0.3 ~ 1312 ft/s½
Velocity 10Hz-1KHz 0.01 - 400.0mm/s True RMS 0.000 ~ 16.00 inch/s
Displacement 10Hz-1KHz 0.001 ~ 4.000mm 0.04 - 160.0 mil

  • RPM (revolution) :60 99,990 r/min (reding should be multiplied by 10 if the display show 10)
  • Frequency :1 ~ 20 KHz
  • Standard Accessories :Magnet, Accelerometer, Stinger probe (Cone), Stinger Probe (Ball), Hard Carrying Case, Manual
  • Optional Accessories :HTC RS-232 Cable with SOftware, RS-232 USB Cable
  • Dimensions : 124 X 62X 30 mm

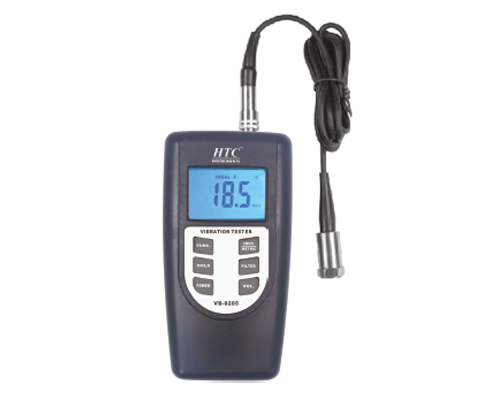

HTC VB-8205 Digital Vibration Meter
