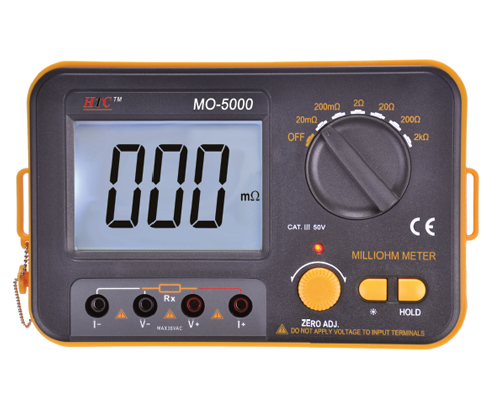

HTC MO 5000

Digital Milliohm Meter

Features:

  • Large LCD Display for easy reading
  • 4 wire testing, capable of testing exreame low resistance
  • Accurate measurement of conductor,electric heading elements and solder point
  • HOLD key for data hold
  • Connection for exernal power supply
  • High measurement range of 0.01mΩ  to 2kΩ at 6 ranges
  • Backlight LCD for easy reading under dark light
  • Strong anti-magnetic and anti-jamming functions
  • Full function Protection

Technical Data:

Range

Range

Resolution

Measuring Current

20mΩ

±(1.5%rdg±3)

0.01mΩ

Approx. 1000mA

200mΩ

±(0.5%rdg±3)

0.1mΩ

Approx. 500mA

1mΩ

20Ω

10mΩ

200Ω

100mΩ

2kΩ

1 Ω



Special function

MO-5000

Low battery indication

Less than approx. 7.5V

Functional protection

Yes

Sampling rate

3 times/sec.

Operation mode

Manual range

Max. display

1999

LCD size

75 x 52 mm

Power Source

1.5V AA battery x6pcs, or external DC 9Vpower Source

Power consumption

Quiescent current approx.50mA

  • Standard Accessories : 4-wire test lead, shoulder strap, battery, operation Manual, Packing Gift box
  • Dimensions : 176(L) x 116(W) x 63(D)mm
